Performance characteristics
1.The appearance is small, beautiful and durable
2.Stable performance, low maintenance rate, remarkable and effective sweeping
3.With a vacuum cleaner system, there is no dust trouble
4.It adopts advanced high performance, maintenance-free battery, no leakage, no harmful gases
5.Wheeled dust box for easy emptying
6.It adopts intelligent single-chip microcomputer control technology, which has the characteristics of low power consumption and powerful functions, which greatly saves peripheral components and is easy to upgrade. It has reached a leading level in the production of sweeper industry.
7.Front LED headlights are suitable for night work.

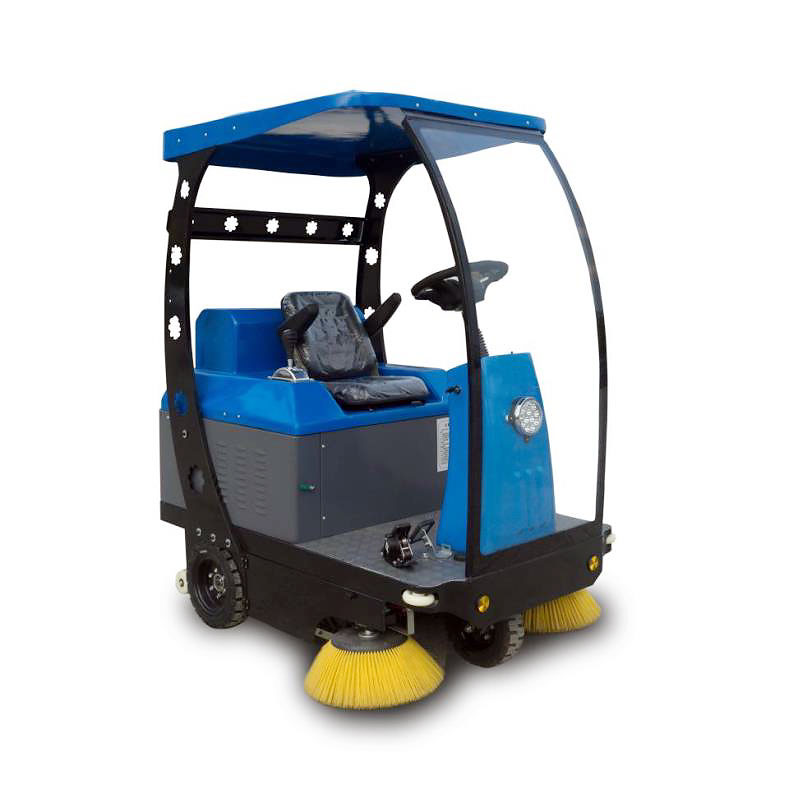

Smart-1400 Parameters |
Sequence No |
Item |
Unit |
Parameter |
1 |
Width of Cleaning |
mm |
1400±100 |
2 |
Work Efficiency |
m²/h |
10000 |
3 |
Climbing Ability |
% |
35 |
4 |
Main Print Length |
mm |
700 |
5 |
Power Source (lead acid maintenance-free battery) |
v |
48V/12V*4*100AH
lithium electricity optional |
6 |
Continuous working hours |
h |
4-7 |
7 |
Dustbin capacity |
L |
180 |
8 |
Water tank capacity |
L |
110 |
9 |
Edge brush diameter |
mm |
500 |
10 |
Drive power |
w |
1200 |
11 |
Operating power (Motor) main brush + fan + side brush + vibration dust |
w |
1200+600+60*2+125 |
12 |
Turning radius |
mm |
1000 |
13 |
Maximum working speed |
Km/h |
6 |
14 |
maximum driving speed |
Km/h |
8 |
15 |
Filter area |
m² |
6 |
16 |
Dimension |
mm |
1700*1400*2000 |
17 |
Brake system |
/ |
Hydraulic brake |
18 |
Tire size (front wheel, rear wheel) |
/ |
300*100/350*100 |
19 |
Carton material structure |
mm |
2.5mm cold steel plate |
20 |
Charging method |
/ |
On-board configuration 48V15AH |
21 |
Body housing |
/ |
Fiberglass structure with high temperature resistance |
22 |
weight |
Kg |
600 |
